Spicer 2-4-3331 - 1310 Series Driveshaft End Yoke .875" x 13 Involute

No reviews yet Write a Review
SKU:
DDP2-4-3331

Description:

Drive Shaft End Yoke

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
Spicer 2-4-3331 - 1310 Series Driveshaft End Yoke .875" x 13 Involute

Description:

Drive Shaft End Yoke

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
$107.76
Brand:
SPICER DRIVELINE
Weight:
1.73 LBS
Mfr Part Number:
2-4-3331
Series:
1310
Material:
Steel
Spline Count:
13
Type:
Splined Hole

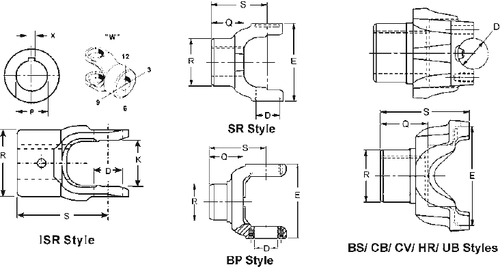

Hub Diameter R:
2.000
Involute Spline:
I
Length Thru Hole Q:
1.567
Yoke Style:
SR
C/L To End Hub S:
2.562
Joint Angle #1:
30
Yoke Bearing Dimension (In) D:
1.062
Major Diameter:
0.878
Outside Yoke Dimension (In) E:
3.469
