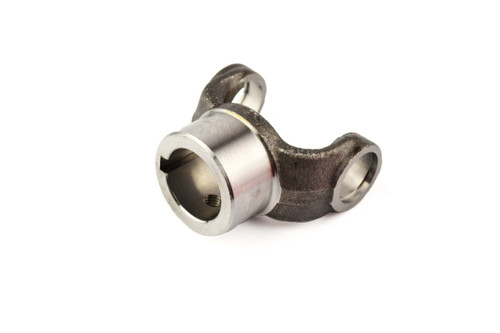

Spicer 2-4-553 - 1310 Series Round Bore Drive Shaft Yoke

SPICER DRIVELINE

No reviews yet Write a Review
SKU:
DDP2-4-553

Description:

Drive Shaft End Yoke

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
Spicer 2-4-553 - 1310 Series Round Bore Drive Shaft Yoke

Description:

Drive Shaft End Yoke

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
$314.64
Brand:
SPICER DRIVELINE
Weight:
1.70 LBS
Mfr Part Number:
2-4-553
Series:
1310
Material:
Steel
Type:
Straight Round Hole
Hub Diameter R:
2.125
Involute Spline:
N
Yoke Style:
SR
C/L To End Hub S:
2.562
Joint Angle #1:
17
Yoke Bearing Dimension (In) D:
1.062
Keyway Location W:
12
Set Screw Location W:
6
Set Screw Hole Diameter (In):
0.375
Outside Yoke Dimension (In) E:
3.469
Hole Diameter (In) P:
1.188
Sae Keyway Width (In) X:
0.312
Hole Diameter - Max:
1.188
Hole Diameter - Min:
1.187
Keyway Width - Max:
0.3155
Keyway Width - Min:
0.3135
