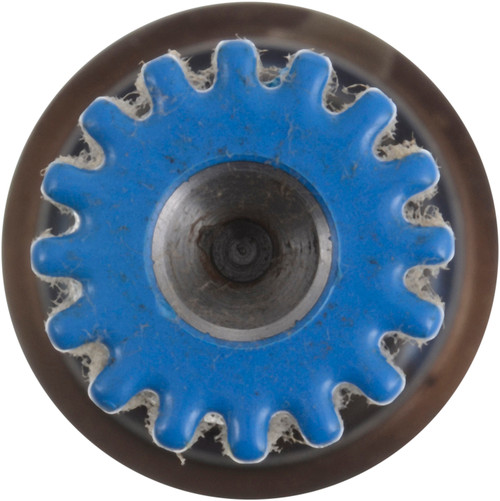

Name: Spicer 2-53-681 - Splined Stub Shaft for Driveshaft - Heavy Duty
Brand: SPICER DRIVELINE
SKU: DDP2-53-681
Price: 158.57 USD
Availability: InStock

Specifications & Model Diagram
Description
Interchanges
Literature

Brand:

SPICER DRIVELINE

Weight:

4.05 LBS

Mfr Part Number:

2-53-681

Series:

1210-1350

Material:

Steel

Style:

Fits Tube Diameter:

2.5

Number of Splines:

15/16

Involute:

Fits Tube Wall:

0.083

Butt Diameter:

2.345

Bearing Diameter (C) In.:

1.378

Bearing Diameter (Max):

1.3784

Spline End To Weld (K) In.:

8.875

Spline Length (L) In.:

2.500

Spline O.D.:

1.3750

Bearing Diameter (Min):

1.3779

Shoulder Diameter (B) In.:

1.688

Shoulder Length (G) In.:

0.812

Spline End To Brg Shoulder (Y):

7.812

For Use With:

Outboard Slip Yoke

Bearing Diameter Length:

1.54

Bearing Diameter Radius:

0.19

Drive Shaft Midship Stub Shaft

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Daimler: SP 2 53 681	Daimler: SP 2 53 681HP	Freightliner Trucks: SP 2 53 681	Freightliner Trucks: SP 2 53 681HP	International Harvester (IHC): 253681
International Harvester (IHC): D253681	International Harvester (IHC): E253681	Navistar: 253681	Navistar: D253681	Navistar: DS253681
Navistar: E253681	Paccar Parts: 2-53-681	UAP: 2-53-681	Volvo Cars: SP 253681	P2-53-681
