Brand:
SPICER DRIVELINE
Weight:
5.90 LBS
Mfr Part Number:
3-40-1411
Series:
1310-1480
Material:
Steel
Spline Count:
16
Involute Spline:
N
Major Diameter:
1.562
Fits Tube Diameter:
3.500
Butt Diameter:
3.345

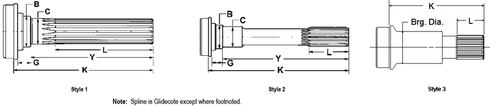

End Of Spline To Radius (R):
9.810
End Of Spline To Weld (K):
10.750
Fit Tube Wall Thickness:
.083
Length Of Spline (L):
3.000
Glidecote Spline:
Y
