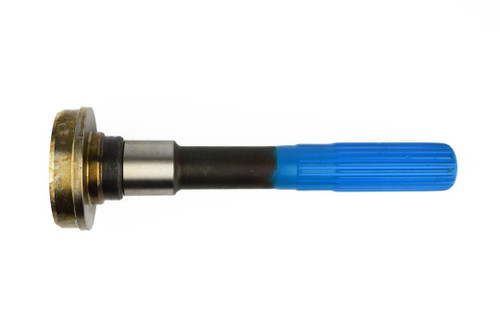

350-53-23770 MIDSHIP TUBE SHAFT

SPICER DRIVELINE

No reviews yet Write a Review
SKU:
DDP350-53-23770

Description:

Drive Shaft Midship Stub Shaft

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
350-53-23770 MIDSHIP TUBE SHAFT

Description:

Drive Shaft Midship Stub Shaft

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
$241.80
Brand:
SPICER DRIVELINE
Weight:
13.35 LBS
Mfr Part Number:
350-53-23770
Series:
SPL350
Material:
Steel

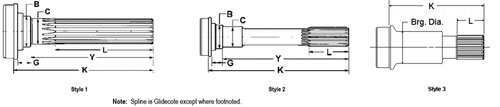

Style:
1
Thread Size:
M38X1.5-6G
Fits Tube Diameter:
140.000MM
Number of Splines:
68 I
Involute:
Y
Fits Tube Wall:
.083
Butt Diameter:
5.14
Bearing Diameter (C) In.:
2.756
Bearing Diameter (Max):
2.756
Spline End To Weld (K) In.:
5.020
Spline Length (L) In.:
2.244
Spline O.D.:
2.707
Bearing Diameter (Min):
2.755
Shoulder Diameter (B) In.:
3.130
Shoulder Length (G) In.:
.216
Spline End To Brg Shoulder (Y):
3.366
For Use With:
End Yoke Or Companion Flange
