90-4-381-1 SPL90 SERIES HALF ROUND YOKE

SPICER DRIVELINE

No reviews yet Write a Review
SKU:
DDP90-4-381-1

Description:

Drive Shaft End Yoke

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Applications: CLARK - CL-550, FULLER - FS-5005, FS-5205, FSB-5305
90-4-381-1 SPL90 SERIES HALF ROUND YOKE

Description:

Drive Shaft End Yoke

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Applications: CLARK - CL-550, FULLER - FS-5005, FS-5205, FSB-5305
$201.41
Brand:
SPICER DRIVELINE
Weight:
8.45 LBS
Mfr Part Number:
90-4-381-1
Series:
SPL90
Material:
Steel
Spline Count:
10
Type:
Splined Hole

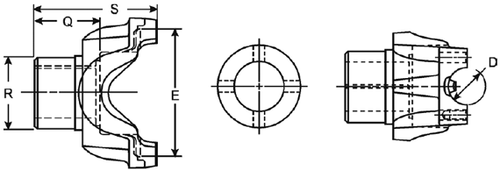

Hub Diameter R:
2.750
Involute Spline:
N
Length Thru Hole Q:
2.781
Yoke Style:
BS
C/L To End Hub S:
4.984
Joint Angle #1:
15
Assembly:
N
Includes Slinger/Plug:
N
Yoke Bearing Dimension (In) D:
1.625
Major Diameter:
1.962
Outside Yoke Dimension (In) E:
5.375
