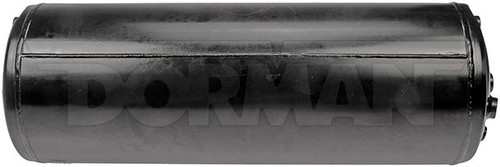

924-5820 VOLVO AIR TANK VN VNL SAE PORT

DORMAN PRODUCTS

No reviews yet Write a Review
SKU:
DOR924-5820

Description:

Air Tank Assembly

Maintain the effectiveness of air-actuated braking and suspension systems by replacing a corroded or leaking air tank with a new reservoir. Designed to fit like the original equipment tank with same port configurations.

  • Direct replacement - this air reservoir features the same port configuration and physical dimensions as the original tank
  • Quality construction - this tank is made with precise port locations and finished in a corrosion-resistant coating inside and outside
  • Validation tested - has been salt spray chamber tested internally and externally to meet or exceed industry standard for corrosion resistance
  • Excellent value - original equipment quality at a lower cost

Application Summary: Volvo 2018-01

Description:

Air Tank Assembly

Maintain the effectiveness of air-actuated braking and suspension systems by replacing a corroded or leaking air tank with a new reservoir. Designed to fit like the original equipment tank with same port configurations.

  • Direct replacement - this air reservoir features the same port configuration and physical dimensions as the original tank
  • Quality construction - this tank is made with precise port locations and finished in a corrosion-resistant coating inside and outside
  • Validation tested - has been salt spray chamber tested internally and externally to meet or exceed industry standard for corrosion resistance
  • Excellent value - original equipment quality at a lower cost

Application Summary: Volvo 2018-01
$278.37
Brand:
DORMAN PRODUCTS
Weight:
29.25 LBS
Mfr Part Number:
924-5820
Material:
Carbon Steel
Package Contents:
1 Air Tank
Selling Package Quantity UOM:
Piece
Packaging Type:
Box
Package Quantity:
1
Length:
29.5 in
Color:
Black
Mounting Hardware Included:
No
Mounting Hole Quantity:
0
Diameter:
10 in
Material Thickness:
0.13 in
Mounting Type:
Strap On
Port Quantity:
7
Maximum Working Pressure:
150 PSI
Port Thread Diameter:
1/4 in | 1/4 in | 1/4 in | 1/4 in | 1/2 in | 1/2 in | 1/2 in
Port Thread Pitch:
1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm |
Port Threads Per Inch:
NPT | NPT | NPT | NPT | NPT | NPT | NPT
Tank Chamber Quantity:
1
Threaded Mounting Bracket Included:
No
Valve Included:
No
Volume:
35 L
