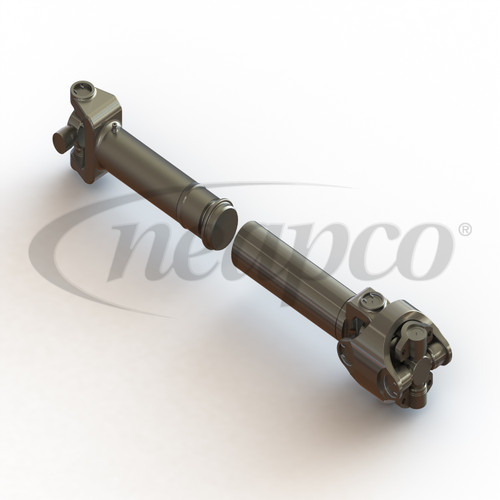

N9553SF 1310 SERIES UNWELDED PTO DRIVE SHAFT NON GREASABLE

NEAPCO

No reviews yet Write a Review
SKU:
NEAN9553SF

Description:

  • ASSEMBLY INCLUDES
    • (1) 1310 series slip yoke
    • (1) 1310 series spline shaft
    • (2) 1310 series universal joints
    • (1) 1310 series weld yoke
    • (1) 2 inch .083 wall tube 47-3/4 inches long
  • Neapco N9553-SF PTO Driveshaft comes partially welded and assembled
    • Weld yoke is factory welded to the tube, you just cut the tube to length and weld on the spline
    • U-Joints factory installed in the yokes
N9553SF 1310 SERIES UNWELDED PTO DRIVE SHAFT NON GREASABLE

Description:

  • ASSEMBLY INCLUDES
    • (1) 1310 series slip yoke
    • (1) 1310 series spline shaft
    • (2) 1310 series universal joints
    • (1) 1310 series weld yoke
    • (1) 2 inch .083 wall tube 47-3/4 inches long
  • Neapco N9553-SF PTO Driveshaft comes partially welded and assembled
    • Weld yoke is factory welded to the tube, you just cut the tube to length and weld on the spline
    • U-Joints factory installed in the yokes
$243.97
Brand:
NEAPCO
Weight:
17.26 LBS
Mfr Part Number:
N9553SF
Application:
Automotive/Ind./Com. PTO
Center Line To Center Line Collapsed Length (In):
55.688
Center Line To Center Line Max. Extended Length (In):
57.969
Driveline Series:
1310
Driveshaft Style:
Unwelded-1
Lubrication Type:
CROSS
Tubing Diameter And Wall (In):
2.000 X .083
Yoke/Cv And Tube Length (In):
49.438
