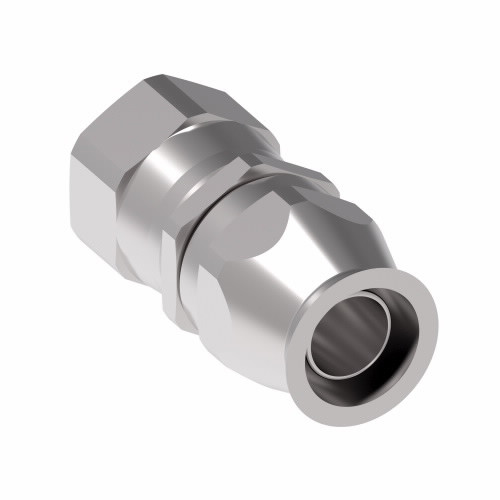

Brand:
AEROQUIP
Weight:
0.13 LBS
Mfr Part Number:
190600-5C
Angle shape:
Straight
Compatible hose ID IN:
0.310
Compatible hose ID MM:
7.900
Construction Style:
Reusable
End size 1:
-5
End type 1:
Female 37 degree swivel
Hex size 2 MM:
16.000
Hose cut off factor IN:
1.170
Hose cut off factor MM:
29.718
Hose size:
-5
Inside diameter IN:
0.230
Inside diameter MM:
5.842
Product material:
316 Stainless steel
A dimension IN:
1.680
A dimension MM:
42.672
Thread size 1:
1/2-20 UNF
End connection torque:
15-16 lb-ft(20-22 Nm)
Product length in:
1.680
Product height in:
0.620
Product height mm:
15.748
Product length mm:
42.672
Product width in:
0.620
Product width mm:
15.748
