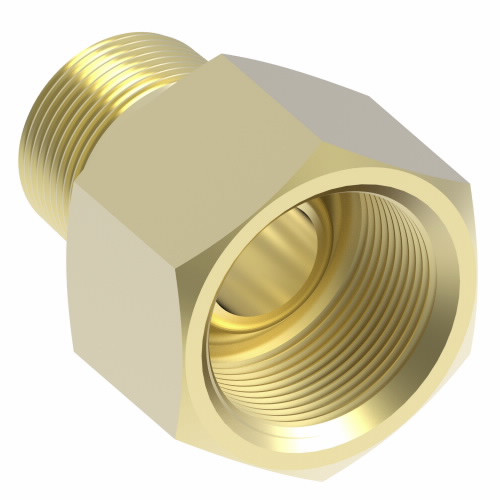

Brand:
AEROQUIP
Weight:
0.03 LBS
Mfr Part Number:
202X5
Angle shape:
Straight
End type 1:
Male pipe (NPTF)
Hex size 1 IN:
0.594
Hex size 1 MM:
15.100
Product material:
Brass
End type 2:
Female inverted flare
Item type:
Adapter-straight
Thread sealant:
No
Product length in:
0.790
Product length mm:
20.066
Tube outside diameter 1 IN:
0.220
Tube outside diameter 1 MM:
5.6
Tube outside diameter 2 IN:
0.220
Tube outside diameter 2 MM:
5.6
Working temp max C:
121
Working temp max F:
250
Working temp min C:
-40
Working temp min F:
-40
Thread size 27:
1/2-20 UNF
Working pressure bar:
138
Working pressure psi:
2000.00
