250-4-271-1 SPL250 SERIES HALF ROUNDYOKE

SPICER DRIVELINE

No reviews yet Write a Review
SKU:
DDP250-4-271-1

Description:

Description:

Drive Shaft End Yoke
Application: FULLER - FR-11210, FR-12210, FR-13210, FR-14210, FR-15210, FR-16210, FRO-16210C, FRO-17210C, FRO-18210C, RT-14209, RT-14210, RT-15210, RT-16210, RT-16915, RTLO-14918, RTLO-16913, RTLO-18913, RTO-11909M, RTO-14209, RTO-14209M, RTO-14210, RTO-14908L, RTO-14909M, RTO-15210, RTO-16210, RTO-16908L, RTO-16910C
250-4-271-1 SPL250 SERIES HALF ROUNDYOKE

Description:

Description:

Drive Shaft End Yoke
Application: FULLER - FR-11210, FR-12210, FR-13210, FR-14210, FR-15210, FR-16210, FRO-16210C, FRO-17210C, FRO-18210C, RT-14209, RT-14210, RT-15210, RT-16210, RT-16915, RTLO-14918, RTLO-16913, RTLO-18913, RTO-11909M, RTO-14209, RTO-14209M, RTO-14210, RTO-14908L, RTO-14909M, RTO-15210, RTO-16210, RTO-16908L, RTO-16910C
$254.71
Brand:
SPICER DRIVELINE
Weight:
17.65 LBS
Mfr Part Number:
250-4-271-1
Description:
Spicer 250-4-271-1 SPL250 End Yoke
Series:
SPL250
Material:
Steel
Spline Count:
54
Type:
Splined Hole
Involute Spline:
I

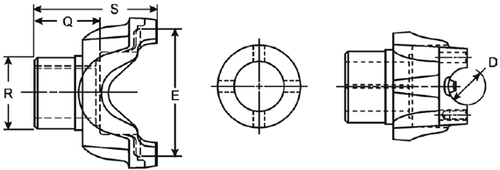

Length Thru Hole Q:
2.750
Yoke Style:
HR
C/L To End Hub S:
5.703
Joint Angle #1:
25
Assembly:
N
Includes Slinger/Plug:
N
Yoke Bearing Dimension (In) D:
2.362
Major Diameter:
2.794
Outside Yoke Dimension (In) E:
6.417
