3-1-1013-6 1350 SERIES COMPANION FLANGE

SPICER DRIVELINE

No reviews yet Write a Review
SKU:
DDP3-1-1013-6

Description:

Description:

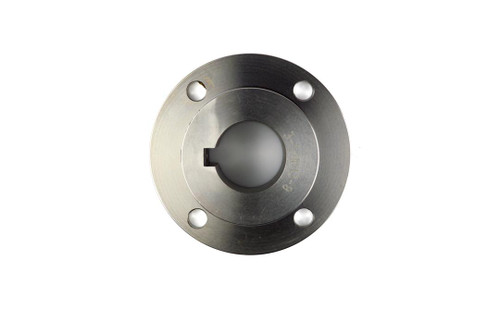

Drive Shaft Companion Flange
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
3-1-1013-6 1350 SERIES COMPANION FLANGE

Description:

Description:

Drive Shaft Companion Flange
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
$439.38
Brand:
SPICER DRIVELINE
Weight:
3.85 LBS
Mfr Part Number:
3-1-1013-6
Description:
Spicer 3-1-1013-6 Companion Flange
Series:
1350
Material:
Steel
Number Of Holes:
4
Flange Type:
Circular

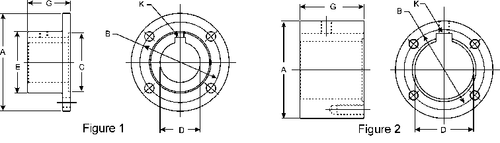

Pilot Diameter (C) In.:
2.750 - FEMALE
Bolt Circle Diameter (B) In.:
3.750
Actual Hole Diameter (Max):
1.376
Actual Hole Diameter (Min):
1.375
Bore Diameter (D) In.:
1.375
Circ Flnge Face To End Of Hub:
2.000
Flange Width Diameter (A) In.:
4.56
Hub Diameter (E) In.:
2.875
Key Width (K) In.:
0.375
Set Screw Hole Diameter In.:
0.375
Bolt Hole Diameter (In.):
.438 - DRILLED
