Brand:
AEROQUIP
Weight:
0.12 LBS
Mfr Part Number:
402X6X6
Angle shape:
90 Degree
End type 1:
Male pipe (NPTF)
Hex size 1 IN:
0.750
Hex size 1 MM:
19.100
Product material:
Brass

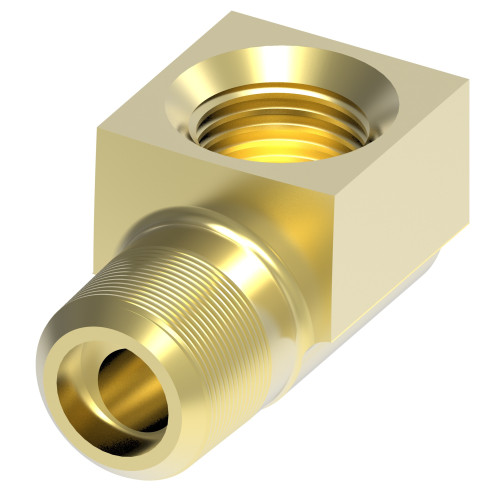

Item type:
Adapter-elbow
Thread sealant:
No
Drop dimension IN:
0.950
Drop dimension MM:
24.10
Tube outside diameter 1 IN:
0.440
Tube outside diameter 1 MM:
11.2
Tube outside diameter 2 IN:
0.610
Tube outside diameter 2 MM:
15.5
Working temp max C:
121
Working temp max F:
250
Working temp min C:
-54
Working temp min F:
-65
Thread size 27:
5/8-18 UNF
Working pressure bar:
138
Working pressure psi:
2000
