Brand:
AEROQUIP
Weight:
0.12 LBS
Mfr Part Number:
50X4X4
Angle shape:
90 Degree
End type 1:
Female pipe (NPTF)
Hex size 1 IN:
0.690
Hex size 1 MM:
11.2
Product material:
Brass
End type 2:
Male 37 degree

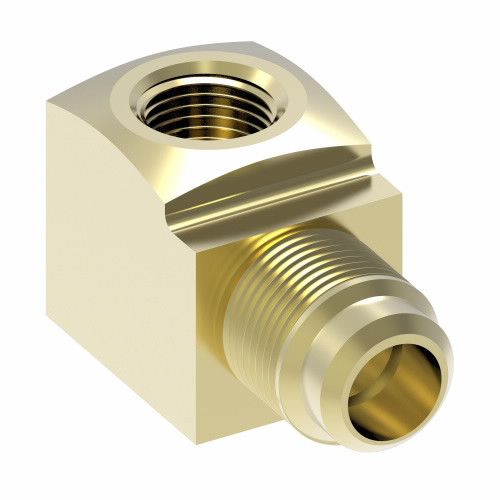

Item type:
Adapter-elbow
Thread sealant:
No
Drop dimension IN:
0.690
Drop dimension MM:
24.6
Tube outside diameter 1 IN:
0.560
Tube outside diameter 1 MM:
14.2
Tube outside diameter 2 IN:
0.190
Tube outside diameter 2 MM:
4.8
Working temp max C:
204
Working temp max F:
400
Working temp min C:
-54
Working temp min F:
-65
Thread size 27:
7/16-20 UNF
Working pressure bar:
138
Working pressure psi:
2000.00
