Brand:
AEROQUIP
Weight:
0.26 LBS
Mfr Part Number:
55X8
Angle shape:
90 Degree
End type 1:
Male 37 degree
Hex size 1 IN:
0.790
Hex size 1 MM:
20.100
Product material:
Brass
Thread size 1:
3/4-16 UNF
End type 2:
Male 37 degree

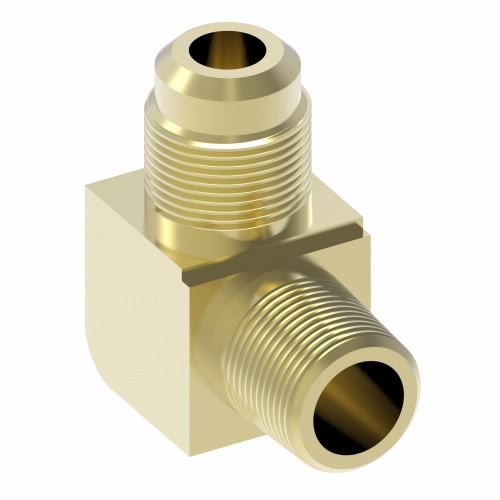

Item type:
Adapter-elbow
Thread sealant:
No
Drop dimension IN:
1
Drop dimension MM:
31
Tube outside diameter 1 IN:
0.410
Tube outside diameter 1 MM:
10.4
Tube outside diameter 2 IN:
0.410
Tube outside diameter 2 MM:
10.4
Working temp max C:
204
Working temp max F:
400
Working temp min C:
-54
Working temp min F:
-65
Thread size 27:
3/4-16 UNF
Working pressure bar:
138.00
Working pressure psi:
2000.00
