Brand:
SPICER DRIVELINE
Weight:
7.50 LBS
Mfr Part Number:
70-53-51

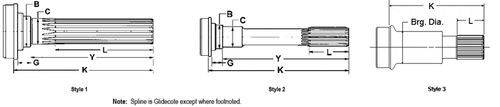

Style:
2
Fits Tube Diameter:
3.5
Number of Splines:
26/27 I
Involute:
Y
Fits Tube Wall:
0.095
Butt Diameter:
3.321
Bearing Diameter (C) In.:
1.772
Bearing Diameter (Max):
1.772
Spline End To Weld (K) In.:
9.693
Spline Length (L) In.:
3.500
Spline O.D.:
1.7520
Bearing Diameter (Min):
1.7716
Shoulder Diameter (B) In.:
2.154
Shoulder Length (G) In.:
0.554
Spline End To Brg Shoulder (Y):
8.902
For Use With:
Slip Yoke
Bearing Diameter Length:
1.572
Bearing Diameter Radius:
0.0402
