Brand:
BUYERS PRODUCTS
Weight:
0.37 LBS
Mfr Part Number:
B27087CKT
Description:

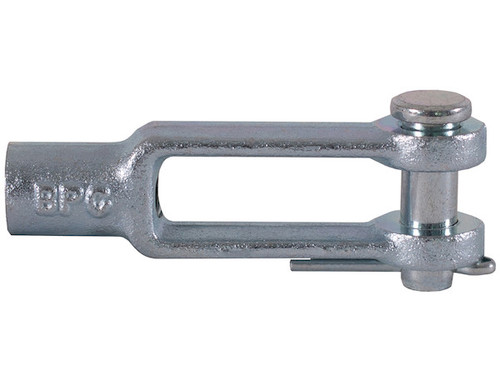

Buyers Products Clevis Rod End with Pin and Cotter Pin is used for pivot point linkages on air cylinders, shafts, rods, and other assemblies.
Thread Size:
5/8-18
Material:
Forged Steel
Color:
Zinc
Finish:
Zinc Plated
Type:
Standard
Overall Pin Length:
1.75
Hole Diameter (G):
0.500 inch
Neck Diameter (B):
0.844 inch
Clevis Pin Included (y/n):
Yes
Base to Hole Center (A):
1.903 inch
Inner Distance Between Arms (E):
0.594 inch
Center Hole to Neck (D):
1.250 inch
Neck Length (H):
0.563 inch
Width (F):
1.281 inch
Height of Yoke Arm:
0.847
Chamfer Length:
0.156
Bottom of Clevis Pin Head to Bottom of Pin (Maximum Usable Length):
1.563
Clevis Pin Head Bevel Length:
0.156
Clevis Pin Hole Drill Number:
29
Clevis Pin Head Diameter:
0.625
Clevis Pin Hole Diameter:
0.136
Chamfer Angle:
15
Clevis Pin Diameter:
0.5
NOTUSED:
1.344
