Brand:
AEROQUIP
Mfr Part Number:

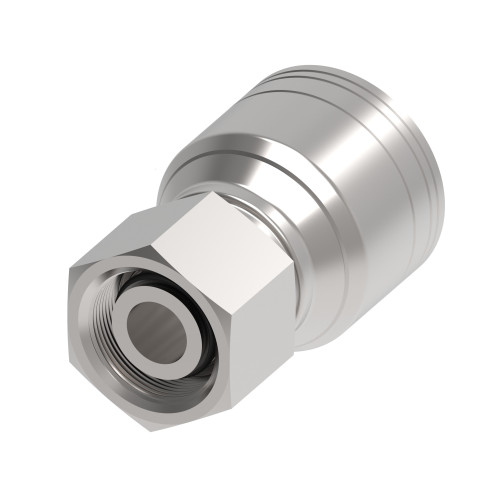

1A5DL4
Angle shape:
Straight
Compatible hose ID IN:
0.250
Compatible hose ID MM:
6.400
Compatible tube OD IN:
0.31
Compatible tube OD MM:
7.938
Construction Style:
Crimp
End size 1:
-5
End type 1:
24 deg. DKO swivel light duty
Hex size 1 IN:
0.550
Hex size 1 MM:
13.970
Hose cut off factor IN:
0.920
Hose cut off factor MM:
23.400
Hose size:
-4
Inside diameter IN:
0.1700
Inside diameter MM:
4.2000
Product material:
Carbon steel
Tube OD 1 IN:
0.313
Tube OD 1 MM:
7.938
A dimension IN:
1.780
A dimension MM:
45.300
Thread size 1:
M12x1.5
End connection torque:
15-16 lb-ft(20-22 Nm)
Product length in:
1.780
Finish plating:
Dura-Kote
Series:
1A/Z Series
Product height in:
0.880
Product height mm:
22.352
Product length mm:
45.212
Product width in:
0.882
Product width mm:
22.403
Seal material:
Nitrile (NBR)
Proposition 65:
Cancer and Reproductive Harm
