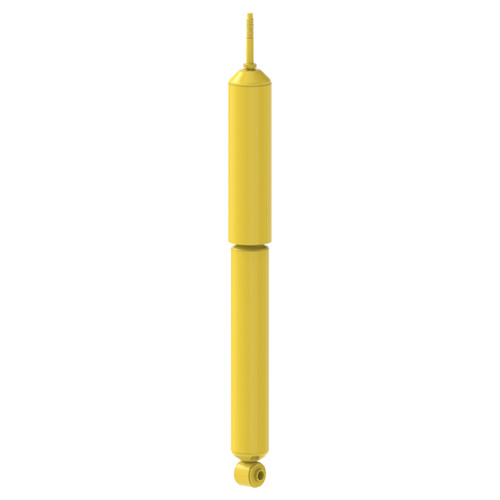

Name: Monroe 34761 - Rear Shock Absorber for Ford
Brand: MONROE
SKU: MON34761MM
Price: 60.08 USD
Availability: InStock

Monroe 34761 - Rear Shock Absorber for Ford

No reviews yet Write a Review

SKU:

MON34761MM

Description:

The Monroe® Gas-Magnum® Rear Suspension Shock Absorber is designed for midsize and full-size trucks and vans, delivering firm control without a harsh ride. With up to twice the fluid capacity of standard 1-in. bore shocks, Gas-Magnum shocks work more efficiently with less effort.

Built for hardworking Ford full-size vans and wagons, the Gas-Magnum delivers reliable rear suspension performance for E-Series Econoline platforms across multiple model years with consistent, controlled damping.

DESIGNED FOR TRUCKS AND VANS: Engineered for full-size trucks and vans with full-displaced valving on compression cycles for controlled ride and handling.

BUILT TO LAST: Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability; self-lubricating fluid seal reduces friction and wear.

CONSISTENT RIDE: OE all-weather fluid with special modifiers handles extreme temperatures and ensures smooth rod reaction.

IMPROVES PERFORMANCE: Nitrogen gas-charge maintains tire-to-road contact by reducing aeration and shock fade.

LONGER SERVICE LIFE: Larger bore and 2-in. reserve tube hold more oil for greater capacity and controlled ride over time.

BUY WITH CONFIDENCE: Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the Difference Guarantee.

Common Fits: Compatible with rear suspension on 1992-2024 Ford E-250 and E-350 Econoline, 2003-2024 Ford E-450 Super Duty, 1999-2024 Ford E-350 Super Duty, 1996-1999 Ford Econoline Super Duty, and 1999-2002 Ford E-450 Econoline Super Duty.

Description:

DESIGNED FOR TRUCKS AND VANS: Engineered for full-size trucks and vans with full-displaced valving on compression cycles for controlled ride and handling.

BUILT TO LAST: Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability; self-lubricating fluid seal reduces friction and wear.

CONSISTENT RIDE: OE all-weather fluid with special modifiers handles extreme temperatures and ensures smooth rod reaction.

IMPROVES PERFORMANCE: Nitrogen gas-charge maintains tire-to-road contact by reducing aeration and shock fade.

LONGER SERVICE LIFE: Larger bore and 2-in. reserve tube hold more oil for greater capacity and controlled ride over time.

BUY WITH CONFIDENCE: Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the Difference Guarantee.

Specifications & Model Diagram
Description
Interchanges
Literature

Brand:

MONROE

Weight:

5.66 LBS

Mfr Part Number:

34761

Country of origin (CO):

Color:

Yellow

Compressed Length:

13.125 (unece.unit.INH)

Cylinder Color:

Yellow

Cylinder Finish:

Painted

Dust Shield Included:

Yes

Dust Shield Material:

Metal

Extended Length:

21.75 (unece.unit.INH)

Gas Charged:

Yes

Grade Type:

Premium

Hydraulic Lockout:

Includes Bump Stop:

Internal Rebound Bumper:

Lower Mount Code:

LS26

Lower Mount Type:

Loop (Eyelet) Bushing and Sleeve

Mounting Hardware Included:

Yes

Shock Absorber Body End Measuring Point:

Center of Loop

Shock Absorber Rod End Measuring Point:

Base of Stem

Travel Length:

8.625 (unece.unit.INH)

Upper Mount Code:

Lower Mount Code48:

LS26

Upper Mount Code74:

Lower Mount Type49:

Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL

Parts Pack(s):

P01135

Upper Mount Type75:

Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
