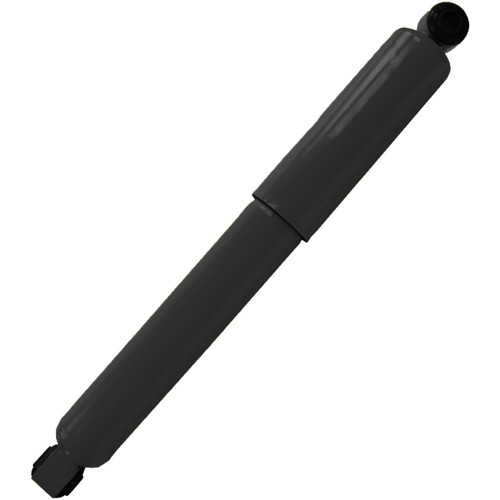

Monroe 65432 - 65 Series Gas Magnum Shock Absorber

No reviews yet Write a Review
SKU:
MON65432MM

Description:

The Monroe® Magnum® Front Suspension Shock Absorber for class 6-8 vehicles is the first gas-charged, large-bore shock designed for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today's heavy-duty truck suspension systems.

Built for severe use class 6-8 trucks, the Magnum front shock delivers consistent performance for Peterbilt 330, Safari Motor Coach, Spartan Motors, and Workhorse motorhome and specialty chassis platforms.

  • FOR HARDWORKING COMMERCIAL VEHICLES: Designed to handle high mileage and severe use class 6-8 trucks and buses.
  • CONSISTENT RIDE: All-weather fluid handles extreme temperatures; larger 2-3/8-in. reserve tube holds more fluid (most applications).
  • EXCEPTIONAL HANDLING: 10-Stage valving tuned to each vehicle; larger 1-3/4-in. bore for efficient damping (most applications).
  • STRONG AND DURABLE: Shouldered and bonded bushings protect from bushing walkout; arc welds up to 360° for durability.
  • BUILT TO LAST: Robust hydraulic lock-out prevents over-extension of air bags and protects the seal assembly (most applications).
  • LONGER SERVICE LIFE: PTFE-coated bearing and nitrocarburized piston rod for long-lasting durability (most applications).
  • REDUCED NOISE, VIBRATION AND HARSHNESS: Exceptional control isolating NVH under most driving conditions.
  • IMPROVES PERFORMANCE: Nitrogen gas-charge reduces aeration and shock fade.
  • BUY WITH CONFIDENCE: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

Common Fits: Compatible with front suspension on 1995-2020 Peterbilt 330, 1993-1999 Safari Motor Coach Magnum Bluestreak, 1995-2000 Safari Motor Coach M Series Blue Max, 2000-2012 Spartan Motors Summit, and 2005-2007 Workhorse UFO Chassis.

Installation Manual

Installation Manual
Safety Data Sheet

Safety Data Sheet
Safety Data Sheet 2

Safety Data Sheet 2
Monroe 65432 - 65 Series Gas Magnum Shock Absorber

Description:

The Monroe® Magnum® Front Suspension Shock Absorber for class 6-8 vehicles is the first gas-charged, large-bore shock designed for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today's heavy-duty truck suspension systems.

Built for severe use class 6-8 trucks, the Magnum front shock delivers consistent performance for Peterbilt 330, Safari Motor Coach, Spartan Motors, and Workhorse motorhome and specialty chassis platforms.

  • FOR HARDWORKING COMMERCIAL VEHICLES: Designed to handle high mileage and severe use class 6-8 trucks and buses.
  • CONSISTENT RIDE: All-weather fluid handles extreme temperatures; larger 2-3/8-in. reserve tube holds more fluid (most applications).
  • EXCEPTIONAL HANDLING: 10-Stage valving tuned to each vehicle; larger 1-3/4-in. bore for efficient damping (most applications).
  • STRONG AND DURABLE: Shouldered and bonded bushings protect from bushing walkout; arc welds up to 360° for durability.
  • BUILT TO LAST: Robust hydraulic lock-out prevents over-extension of air bags and protects the seal assembly (most applications).
  • LONGER SERVICE LIFE: PTFE-coated bearing and nitrocarburized piston rod for long-lasting durability (most applications).
  • REDUCED NOISE, VIBRATION AND HARSHNESS: Exceptional control isolating NVH under most driving conditions.
  • IMPROVES PERFORMANCE: Nitrogen gas-charge reduces aeration and shock fade.
  • BUY WITH CONFIDENCE: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

Common Fits: Compatible with front suspension on 1995-2020 Peterbilt 330, 1993-1999 Safari Motor Coach Magnum Bluestreak, 1995-2000 Safari Motor Coach M Series Blue Max, 2000-2012 Spartan Motors Summit, and 2005-2007 Workhorse UFO Chassis.

Installation Manual

Installation Manual
Safety Data Sheet

Safety Data Sheet
Safety Data Sheet 2

Safety Data Sheet 2
$76.21
Brand:
MONROE
Weight:
7.93 LBS
Mfr Part Number:
65432
Country of origin (CO):
US
Color:
Black
Compressed Length:
13.6875 (unece.unit.INH)
Cylinder Color:
Black
Cylinder Finish:
Painted
Dust Shield Included:
Yes
Dust Shield Material:
Metal
Extended Length:
21.0781 (unece.unit.INH)
Finish:
Painted
Gas Charged:
Yes
Grade Type:
Premium
Hydraulic Lockout:
Yes
Includes Bump Stop:
No
Internal Rebound Bumper:
No
Lower Mount Code:
LS54
Lower Mount Type:
Loop (Eyelet) Bushing and Sleeve
Mounting Hardware Included:
No
Shock Absorber Body End Measuring Point:
Center of Loop
Shock Absorber Rod End Measuring Point:
Center of Loop
Travel Length:
7.39 (unece.unit.INH)
Upper Mount Code:
LS54
Adjustable Damping4:
No
Lower Mount Code48:
LS54
Upper Mount Code74:
LS54
Lower Mount Type49:
Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Upper Mount Type75:
Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
