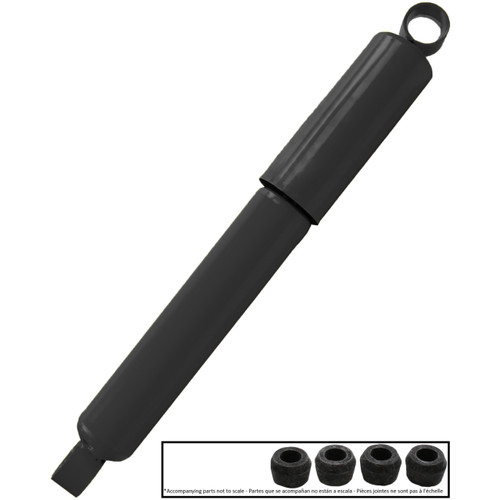

Monroe 65434 - 65 Series Gas Magnum Shock Absorber

No reviews yet Write a Review
SKU:
MON65434MM

Description:

The Monroe® Magnum® Front Suspension Shock Absorber for class 6-8 vehicles is the first gas-charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today's heavy-duty truck suspension systems.

A wide-coverage front Magnum shock for Peterbilt conventional trucks, vocational vehicles, and Kenworth W990, the Magnum is backed by Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

  • For Hardworking Commercial Vehicles: Designed for high mileage and severe use class 6-8 trucks and buses.
  • Consistent Ride: All-weather fluid with special additives handles extreme temperatures; larger 2-3/8-in. reserve tube holds more fluid (most applications).
  • Exceptional Handling: 10-Stage valving tuned per vehicle; larger 1-3/4-in. bore for more efficient damping and a smoother ride (most applications).
  • Strong and Durable: Shouldered and bonded bushing with sleeve prevents bushing walkout; arc welds up to 360° for durability.
  • Built to Last: Hydraulic lock-out prevents over-extension of air bags and protects the seal assembly (most applications).
  • Longer Service Life: PTFE-coated bearing and nitrocarburized piston rod for durability and extended service life (most applications).
  • Reduced NVH: Exceptional control isolating impact-related noise, vibration, and harshness under most driving conditions.
  • Improves Performance: Nitrogen gas-charge maintains tire-to-road contact by reducing aeration and shock fade.
  • Buy with Confidence: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

Common Fits: Peterbilt 220 (2007-2010), Peterbilt 325 (2008-2018), Peterbilt 330 (1995-2016), Peterbilt 357 (1986-2008), Peterbilt 362 (1981-2006), Peterbilt 375 (not listed), Peterbilt 376 (1988-1999), Peterbilt 378 (1990-2007), Peterbilt 379 (1990-2007), Peterbilt 384 (2008-2016), Peterbilt 385 (1996-2007), Peterbilt 386 (2006-2016), Peterbilt 387 (2000-2011); Kenworth W990 (2019-2023). All fitments are front position.

Installation Manual

Installation Manual
Safety Data Sheet

Safety Data Sheet
Safety Data Sheet 2

Safety Data Sheet 2
Monroe 65434 - 65 Series Gas Magnum Shock Absorber

Description:

The Monroe® Magnum® Front Suspension Shock Absorber for class 6-8 vehicles is the first gas-charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today's heavy-duty truck suspension systems.

A wide-coverage front Magnum shock for Peterbilt conventional trucks, vocational vehicles, and Kenworth W990, the Magnum is backed by Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

  • For Hardworking Commercial Vehicles: Designed for high mileage and severe use class 6-8 trucks and buses.
  • Consistent Ride: All-weather fluid with special additives handles extreme temperatures; larger 2-3/8-in. reserve tube holds more fluid (most applications).
  • Exceptional Handling: 10-Stage valving tuned per vehicle; larger 1-3/4-in. bore for more efficient damping and a smoother ride (most applications).
  • Strong and Durable: Shouldered and bonded bushing with sleeve prevents bushing walkout; arc welds up to 360° for durability.
  • Built to Last: Hydraulic lock-out prevents over-extension of air bags and protects the seal assembly (most applications).
  • Longer Service Life: PTFE-coated bearing and nitrocarburized piston rod for durability and extended service life (most applications).
  • Reduced NVH: Exceptional control isolating impact-related noise, vibration, and harshness under most driving conditions.
  • Improves Performance: Nitrogen gas-charge maintains tire-to-road contact by reducing aeration and shock fade.
  • Buy with Confidence: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

Common Fits: Peterbilt 220 (2007-2010), Peterbilt 325 (2008-2018), Peterbilt 330 (1995-2016), Peterbilt 357 (1986-2008), Peterbilt 362 (1981-2006), Peterbilt 375 (not listed), Peterbilt 376 (1988-1999), Peterbilt 378 (1990-2007), Peterbilt 379 (1990-2007), Peterbilt 384 (2008-2016), Peterbilt 385 (1996-2007), Peterbilt 386 (2006-2016), Peterbilt 387 (2000-2011); Kenworth W990 (2019-2023). All fitments are front position.

Installation Manual

Installation Manual
Safety Data Sheet

Safety Data Sheet
Safety Data Sheet 2

Safety Data Sheet 2
$76.07
Brand:
MONROE
Weight:
7.72 LBS
Mfr Part Number:
65434
Country of origin (CO):
US
Color:
Black
Compressed Length:
13.5781 (unece.unit.INH)
Cylinder Color:
Black
Cylinder Finish:
Painted
Dust Shield Included:
Yes
Dust Shield Material:
Metal
Extended Length:
20.8594 (unece.unit.INH)
Finish:
Painted
Gas Charged:
Yes
Grade Type:
Premium
Hydraulic Lockout:
Yes
Includes Bump Stop:
No
Internal Rebound Bumper:
No
Lower Mount Code:
L3
Lower Mount Type:
Loop (Eyelet) Bushing
Mounting Hardware Included:
No
Shock Absorber Body End Measuring Point:
Center of Loop
Shock Absorber Rod End Measuring Point:
Center of Loop
Travel Length:
7.281 (unece.unit.INH)
Upper Mount Code:
L3
Adjustable Damping4:
No
Lower Mount Code48:
L3
Upper Mount Code74:
L3
Lower Mount Type49:
Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL
Shaft Diameter61:
18 MM
Upper Mount Type75:
Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL
Body Diameter:
60.5 (unece.unit.MMT)
