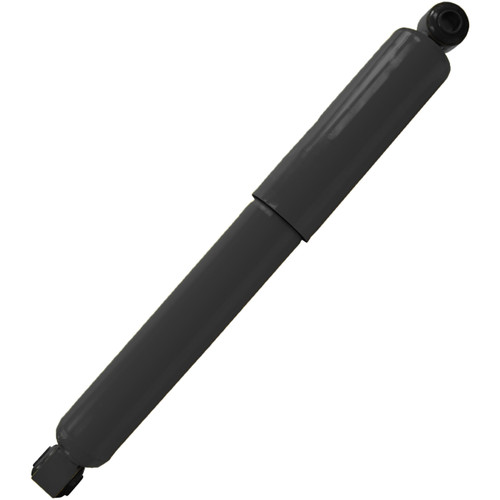

Monroe 65468 - 65 Series Gas Magnum Shock Absorber

Description:

The Monroe® Magnum® Front and Rear Suspension Shock Absorber for class 6-8 vehicles is the first gas-charged, large-bore shock designed for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today's heavy-duty truck suspension systems.

Built for severe use class 6-8 trucks, the Magnum covers both front and rear suspension positions for Isuzu FSR/FVR and Peterbilt 382 and 536 applications with 10-stage valving and large-bore performance.

• FOR HARDWORKING COMMERCIAL VEHICLES: Designed to handle high mileage and severe use class 6-8 trucks and buses.
• CONSISTENT RIDE: All-weather fluid handles extreme temperatures; larger 2-3/8-in. reserve tube holds more fluid (most applications).
• EXCEPTIONAL HANDLING: 10-Stage valving tuned to each vehicle; larger 1-3/4-in. bore for efficient damping (most applications).
• STRONG AND DURABLE: Shouldered and bonded bushings protect from bushing walkout; arc welds up to 360° for durability.
• BUILT TO LAST: Robust hydraulic lock-out prevents over-extension of air bags and protects the seal assembly (most applications).
• LONGER SERVICE LIFE: PTFE-coated bearing and nitrocarburized piston rod for long-lasting durability (most applications).
• REDUCED NOISE, VIBRATION AND HARSHNESS: Exceptional control isolating NVH under most driving conditions.
• IMPROVES PERFORMANCE: Nitrogen gas-charge reduces aeration and shock fade.
• BUY WITH CONFIDENCE: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

Common Fits: Front suspension on 1997-2002 Isuzu FSR and FVR. Rear suspension on 2011-2017 Peterbilt 382 and 2022 Peterbilt 536.
