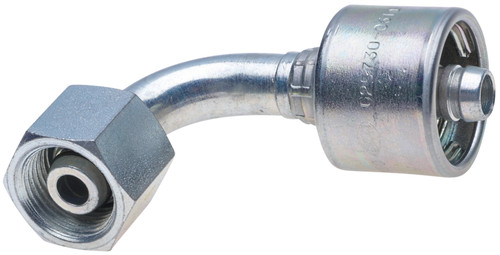

Gates G25730-0816 - MegaCrimp Female DIN 24 Cone Swivel Heavy Series with O-Ring 90 Bent Tube Hydraulic Coupling

No reviews yet Write a Review
SKU:
GATG25730-0816

Description:

Hydraulic Coupling - MegaCrimp Female DIN 24 Cone Swivel - Heavy Series with O-Ring - 90 Bent Tube

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

  • Robust "bite-the-wire" crimp
  • Tested to an industry-leading 1,000,000 impulse cycles
  • Simplifies inventory management
  • Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
  • Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
Gates G25730-0816 - MegaCrimp Female DIN 24 Cone Swivel Heavy Series with O-Ring 90 Bent Tube Hydraulic Coupling

Description:

Hydraulic Coupling - MegaCrimp Female DIN 24 Cone Swivel - Heavy Series with O-Ring - 90 Bent Tube

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

  • Robust "bite-the-wire" crimp
  • Tested to an industry-leading 1,000,000 impulse cycles
  • Simplifies inventory management
  • Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
  • Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
$0.00
Brand:
GATES
Weight:
0.46 LBS
Mfr Part Number:
G25730-0816
Industrial Description:
8G-16FDHORX90
Outside Diameter:
16 (unece.unit.MMT)
Inside Diameter:
.5 (unece.unit.INH)
Length:
2.87 (unece.unit.INH)
Hydraulic Hose Recommendation:
Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Drop Length:
1.73 (unece.unit.INH)
Coupling Description:
MegaCrimp Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring - 90 Bent Tube
Thread Size:
M24X1.5
Gender:
Female
Seal Type:
Mated Angle w/O-Ring
Swivel:
Yes
O-Ring Location:
On Female w/Inverted Nose Seat
Seat Angle:
24
DIN Series:
Heavy
Termination:
DIN
Bent Tube Angle:
90
