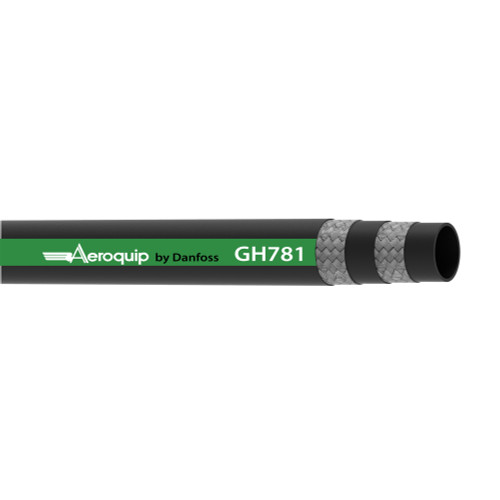

Brand:
AEROQUIP
Mfr Part Number:
GH781-4R250
Application:
Lubrication systems
Color:
Black
Series:
GH781 Series
Product height in:
0.250
Product height mm:
6.400
Product width in:
0.250
Product width mm:
6.400
Compliances:
ISO 18752-DC Performance
Conductivity:
Conductive
Construction:
2 Wire Braid
Cover material:
Nitrile (NBR)
Reinforcement material:
Brass plated steel wire
Tube material:
Nitrile (NBR)
Certifications:
USCG
Abrasion resistance:
Standard
Bend radius min (inch):
1.960
Bend radius min (mm):
50.000
Burst pressure (bar):
1792
Burst pressure (psi):
26000
Impulse cycle (cycles):
300000
Inside diameter (inch):
0.25
Inside diameter (mm):
6.40
Outside diameter (inch):
0.55
Outside diameter (mm):
13.90
Package form:
Reel
Qualified hose fittings:
TTC/Z Series
Size:
-4
Vacuum rating (inHg):
28
Vacuum rating (mmHg):
714.00
Working pressure max (bar):
448
Working pressure max (psi):
6500
Working temperature max (C):
126
Working temperature max (F):
260.0
Working temperature min (C):
-46
Working temperature min (F):
-50.0
Lay line style:
Ink transfer
Conditional temp range:
-40F to 257F intermittently
Length (in):
3000.00000
Length (mm):
76200.00000
