Brand:
SPICER DRIVELINE
Weight:
13.00 LBS
Mfr Part Number:
170-4-541-1
Description:
Spicer 170-4-541-1 SPL170 End Yoke 38 Spline
Series:
SPL170
Material:
Steel
Spline Count:
38
Type:
Splined Hole

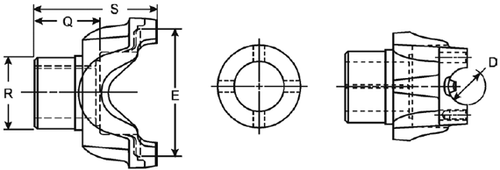

Hub Diameter R:
2.750
Involute Spline:
I
Length Thru Hole Q:
2.125
Yoke Style:
HR
C/L To End Hub S:
4.844
Joint Angle #1:
25
Assembly:
N
Includes Slinger/Plug:
N
Yoke Bearing Dimension (In) D:
2.166
Major Diameter:
1.998
Outside Yoke Dimension (In) E:
6.456
