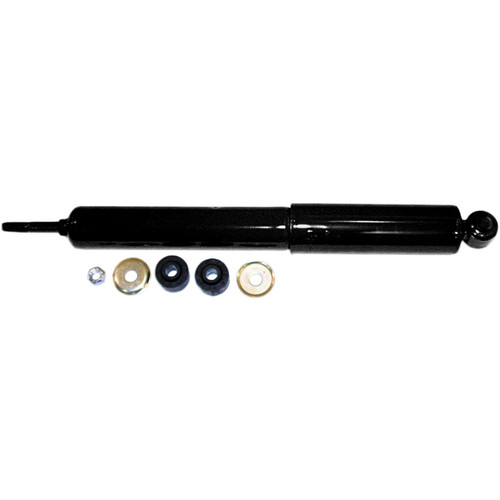

Monroe 65105 - 65 Series Gas Magnum Shock Absorber

Description:

The Monroe® Magnum® Front Suspension Shock Absorber for class 6-8 vehicles is the first gas-charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today's heavy-duty truck suspension systems.

A front-end replacement for Volvo and White/GMC commercial trucks including the VHD, WG, WH, WIA, and WCA platforms, backed by Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

• For Hardworking Commercial Vehicles: Designed for high mileage and severe use class 6-8 trucks and buses.
• Consistent Ride: All-weather fluid with special additives handles extreme temperatures; larger 2-3/8-in. reserve tube holds more fluid (most applications).
• Exceptional Handling: 10-Stage valving tuned per vehicle; larger 1-3/4-in. bore for more efficient damping and a smoother ride (most applications).
• Strong and Durable: Shouldered and bonded bushing with sleeve prevents bushing walkout; arc welds up to 360° for durability.
• Built to Last: Hydraulic lock-out prevents over-extension of air bags and protects the seal assembly (most applications).
• Longer Service Life: PTFE-coated bearing and nitrocarburized piston rod for durability and extended service life (most applications).
• Reduced NVH: Exceptional control isolating impact-related noise, vibration, and harshness under most driving conditions.
• Improves Performance: Nitrogen gas-charge maintains tire-to-road contact by reducing aeration and shock fade.
• Buy with Confidence: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

Common Fits: Volvo VHD (2001-2024), Volvo WG (1996-2001), Volvo WH (1996-1997), Volvo VT (2006-2010); White/GMC WCA and WIA (1988-1995). All fitments are front position.
