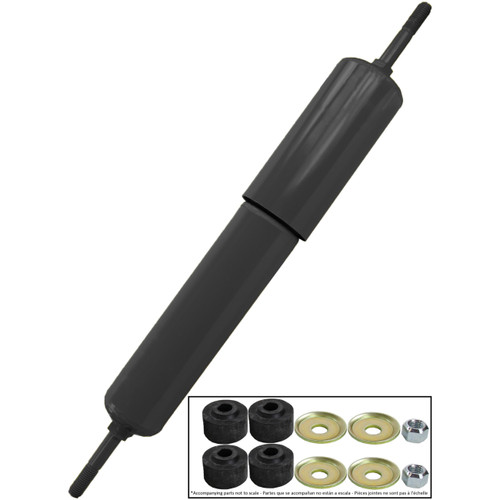

Monroe 65413 - 65 Series Gas Magnum Shock Absorber

Description:

The Monroe^® Magnum^® Rear and Front Suspension Shock Absorber for class 6-8 vehicles is the first gas-charged, large-bore shock designed for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today's heavy-duty truck suspension systems.

Built for severe use class 6-8 trucks, the Magnum covers both rear and front positions across a wide range of Isuzu, Chevrolet, GMC, and truck platforms including medium-duty Kodiak and Topkick models.

• FOR HARDWORKING COMMERCIAL VEHICLES: Designed to handle high mileage and severe use class 6-8 trucks and buses.
• CONSISTENT RIDE: All-weather fluid handles extreme temperatures; larger 2-3/8-in. reserve tube holds more fluid (most applications).
• EXCEPTIONAL HANDLING: 10-Stage valving tuned to each vehicle; larger 1-3/4-in. bore for efficient damping (most applications).
• STRONG AND DURABLE: Shouldered and bonded bushings protect from bushing walkout; arc welds up to 360° for durability.
• BUILT TO LAST: Robust hydraulic lock-out prevents over-extension of air bags and protects the seal assembly (most applications).
• LONGER SERVICE LIFE: PTFE-coated bearing and nitrocarburized piston rod for long-lasting durability (most applications).
• REDUCED NOISE, VIBRATION AND HARSHNESS: Exceptional control isolating NVH under most driving conditions.
• IMPROVES PERFORMANCE: Nitrogen gas-charge reduces aeration and shock fade.
• BUY WITH CONFIDENCE: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

Common Fits: Front suspension on 1997-2002 Isuzu FSR, Chevrolet T6500/T7500, and GMC T6500/T7500. Rear suspension on 1990-2003 Chevrolet C50/C60/C70 Kodiak, GMC C5000-C7500 Topkick, Isuzu FTR/FSR/FVR, and 1997-2002 Chevrolet/GMC C6500 and C7500 models.
